Conditional coverage metrics¶

This example uses a one-dimensional heteroscedastic regression problem to compare MAPIE's conditional coverage metrics on marginal and conditionally-calibrated conformal regressors.

The two regressors use the same fitted polynomial model and the same conformalization data. The marginal :class:~mapie.regression.SplitConformalRegressor uses one global residual cutoff, while :class:~mapie.conditional_conformal_prediction.ConditionalSplitConformalRegressor uses interval indicators in X as its conditional feature map. The goal is to show which metrics detect the local undercoverage of the marginal intervals.

import warnings

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from sklearn.linear_model import LinearRegression
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import PolynomialFeatures

from mapie.conditional_conformal_prediction import ConditionalSplitConformalRegressor
from mapie.conformity_scores import AbsoluteConformityScore
from mapie.metrics.conditional import (
    coverage_gap,
    excess_risk_target_coverage,
    worst_slab_coverage,
)
from mapie.metrics.regression import (
    hsic,
    regression_coverage_score,
    regression_mean_width_score,
    regression_ssc,
    regression_ssc_score,
)
from mapie.regression import SplitConformalRegressor

warnings.filterwarnings("ignore")

1. Generate heteroscedastic data¶

The conditional spread of Y increases sharply for large values of X. A marginal conformal interval can still achieve the requested coverage on average, but it tends to overcover low-noise regions and undercover high-noise regions.

def mean_function(x):
    return np.sin(1.5 * x) + 0.25 * x


def noise_scale(x):
    return 0.15 + 0.15 * x + 0.9 * (x > 3.0)


def generate_heteroscedastic_data(
    seed,
    n_train=600,
    n_conformalize=700,
    n_test=500,
):
    rng = np.random.default_rng(seed)
    n_train_conformalize = n_train + n_conformalize

    x_train_conformalize = rng.uniform(0, 5, size=n_train_conformalize)
    x_test = rng.uniform(0, 5, size=n_test)

    y_train_conformalize = mean_function(x_train_conformalize) + noise_scale(
        x_train_conformalize
    ) * rng.normal(size=n_train_conformalize)
    y_test = mean_function(x_test) + noise_scale(x_test) * rng.normal(size=n_test)

    X_train_conformalize = x_train_conformalize.reshape(-1, 1)
    X_test = x_test.reshape(-1, 1)

    return (
        X_train_conformalize[:n_train],
        y_train_conformalize[:n_train],
        X_train_conformalize[n_train:],
        y_train_conformalize[n_train:],
        X_test,
        y_test,
    )


(
    X_train,
    y_train,
    X_conformalize,
    y_conformalize,
    X_test,
    y_test,
) = generate_heteroscedastic_data(seed=1)

2. Define conditional groups¶

The conditional regressor is asked to guarantee coverage on five intervals of the input space. The same groups are later used by coverage_gap to check whether the local coverage errors are large.

confidence_level = 0.90
x_bins = np.linspace(0, 5, 6)
x_bin_centers = (x_bins[:-1] + x_bins[1:]) / 2
x_bin_labels = [
    f"[{left:.0f}, {right:.0f})" for left, right in zip(x_bins[:-1], x_bins[1:])
]
x_bin_labels[-1] = "[4, 5]"


def group_index(X):
    return np.digitize(np.asarray(X).reshape(-1), x_bins[1:-1], right=False)


def indicator_matrix(X):
    groups = group_index(X)
    matrix = np.zeros((len(groups), len(x_bins) - 1))
    matrix[np.arange(len(groups)), groups] = 1
    return matrix

3. Fit marginal and conditional regressors¶

Both conformal regressors share the same fitted polynomial regressor. The conditional method uses a non-symmetric absolute conformity score so the lower and upper residual cutoffs can adapt separately by group.

estimator = make_pipeline(PolynomialFeatures(4), LinearRegression()).fit(
    X_train, y_train
)

mapie_marginal = SplitConformalRegressor(
    estimator=estimator,
    confidence_level=confidence_level,
    conformity_score="absolute",
    prefit=True,
)
mapie_marginal.conformalize(X_conformalize, y_conformalize)
y_pred_marginal, y_interval_marginal = mapie_marginal.predict_interval(X_test)

mapie_conditional = ConditionalSplitConformalRegressor(
    indicator_matrix,
    estimator=estimator,
    confidence_level=confidence_level,
    conformity_score=AbsoluteConformityScore(sym=False),
    prefit=True,
)
mapie_conditional.conformalize(X_conformalize, y_conformalize)
y_pred_conditional, y_interval_conditional = mapie_conditional.predict_interval(X_test)

4. Compare conditional coverage metrics¶

coverage_gap and worst_slab_coverage use the covariates directly, so they capture the local undercoverage of the marginal interval. hsic and regression_ssc_score condition on interval width instead. They are useful for adaptive intervals, but a constant-width marginal interval can make them look harmless even when coverage depends strongly on X.

def interval_width(y_intervals):
    return y_intervals[:, 1, 0] - y_intervals[:, 0, 0]


def safe_regression_ssc_score(y_true, y_intervals, num_bins):
    try:
        return regression_ssc_score(y_true, y_intervals, num_bins=num_bins)[0]
    except ValueError:
        return np.nan


def compute_metrics(name, y_intervals):
    groups = group_index(X_test)
    return {
        "Regressor": name,
        "Marginal coverage": regression_coverage_score(y_test, y_intervals)[0],
        "Mean width": regression_mean_width_score(y_intervals)[0],
        "CovGap": coverage_gap(
            y_test,
            groups,
            confidence_level,
            y_intervals=y_intervals,
        ),
        "WCovGap": coverage_gap(
            y_test,
            groups,
            confidence_level,
            y_intervals=y_intervals,
            weighted=True,
        ),
        "WSC": worst_slab_coverage(
            X_test,
            y_test,
            y_intervals=y_intervals,
            delta=0.15,
            n_directions=100,
            random_state=1,
        ),
        "ERT loss": excess_risk_target_coverage(
            X_test,
            y_test,
            confidence_level,
            y_intervals=y_intervals,
            n_splits=3,
            random_state=1,
        ),
        "SSC min coverage": safe_regression_ssc_score(
            y_test,
            y_intervals,
            num_bins=4,
        ),
        "HSIC": hsic(y_test, y_intervals)[0],
    }


metrics = pd.DataFrame(
    [
        compute_metrics("Marginal", y_interval_marginal),
        compute_metrics("Conditional", y_interval_conditional),
    ]
).set_index("Regressor")

with pd.option_context("display.max_columns", None):
    print(metrics.round(3))

Out:

             Marginal coverage  Mean width  CovGap  WCovGap    WSC  ERT loss  \
Regressor
Marginal                 0.916       3.662   0.112    0.111  0.667     0.092
Conditional              0.896       2.775   0.031    0.030  0.840     0.034

             SSC min coverage   HSIC
Regressor
Marginal                  NaN  0.000
Conditional             0.864  0.012

The two regressors have similar marginal coverage, close to the target 0.90. The group-aware metrics tell a different story:

CovGap and WCovGap are much larger for the marginal regressor, because some X groups are overcovered while the high-noise groups are undercovered.
WSC is also lower for the marginal regressor; it searches geometric slabs in feature space and finds a poorly-covered region.
ERT is a learned conditional-coverage diagnostic. A lower loss means the conditional coverage is closer to the target across X.
SSC and HSIC only look at coverage as a function of interval width. They are not enough to diagnose a constant-width marginal interval (returning NaN).

5. Visualize coverage by covariate group¶

The plot below shows why the group-aware metrics separate the two regressors: the marginal regressor misses the target in the high-noise bins, whereas the conditional regressor keeps each group closer to 90% coverage.

def coverage_by_group(y_true, y_intervals):
    coverages = []
    for group in range(len(x_bins) - 1):
        mask = group_index(X_test) == group
        coverages.append(regression_coverage_score(y_true[mask], y_intervals[mask])[0])
    return np.asarray(coverages)


coverage_marginal_by_group = coverage_by_group(y_test, y_interval_marginal)
coverage_conditional_by_group = coverage_by_group(y_test, y_interval_conditional)

fig, axes = plt.subplots(1, 2, figsize=(11, 4))
bar_width = 0.35
bar_positions = np.arange(len(x_bin_labels))

axes[0].bar(
    bar_positions - bar_width / 2,
    coverage_marginal_by_group,
    width=bar_width,
    label="Marginal",
)
axes[0].bar(
    bar_positions + bar_width / 2,
    coverage_conditional_by_group,
    width=bar_width,
    label="Conditional",
)
axes[0].axhline(confidence_level, color="black", linestyle="--", linewidth=1)
axes[0].set_ylim(0.60, 1.02)
axes[0].set_ylabel("Coverage")
axes[0].set_title("Coverage by X group")
axes[0].set_xticks(bar_positions)
axes[0].set_xticklabels(x_bin_labels, rotation=30, ha="right")
axes[0].legend()

sort_order = np.argsort(X_test[:, 0])
X_test_sorted = X_test[sort_order, 0]
axes[1].scatter(X_test[:, 0], y_test, alpha=0.20, s=16, label="Test data")
axes[1].plot(
    X_test_sorted,
    y_pred_marginal[sort_order],
    color="black",
    linewidth=1.5,
    label="Prediction",
)
axes[1].fill_between(
    X_test_sorted,
    y_interval_marginal[sort_order, 0, 0],
    y_interval_marginal[sort_order, 1, 0],
    alpha=0.25,
    label="Marginal interval",
)
axes[1].fill_between(
    X_test_sorted,
    y_interval_conditional[sort_order, 0, 0],
    y_interval_conditional[sort_order, 1, 0],
    alpha=0.25,
    label="Conditional interval",
)
axes[1].set_xlabel("X")
axes[1].set_ylabel("Y")
axes[1].set_title("Prediction intervals")
axes[1].legend()

plt.tight_layout()
plt.show()

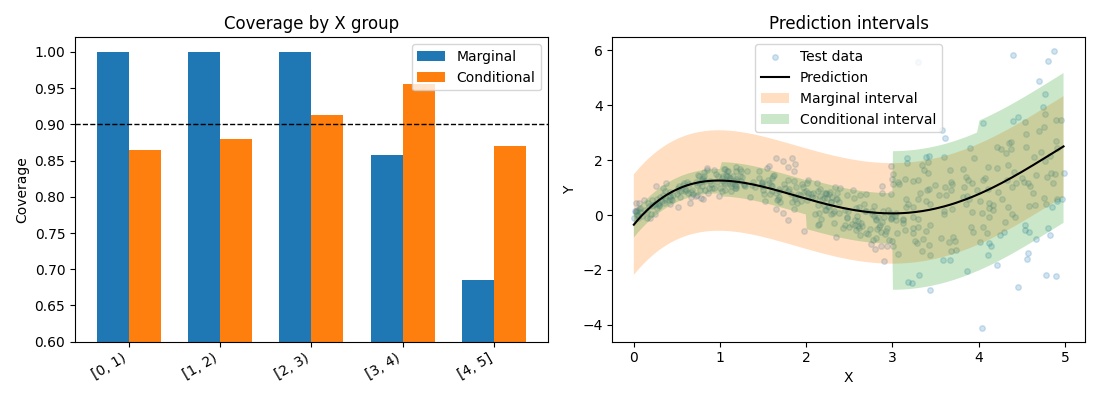

Coverage by X group, Prediction intervals

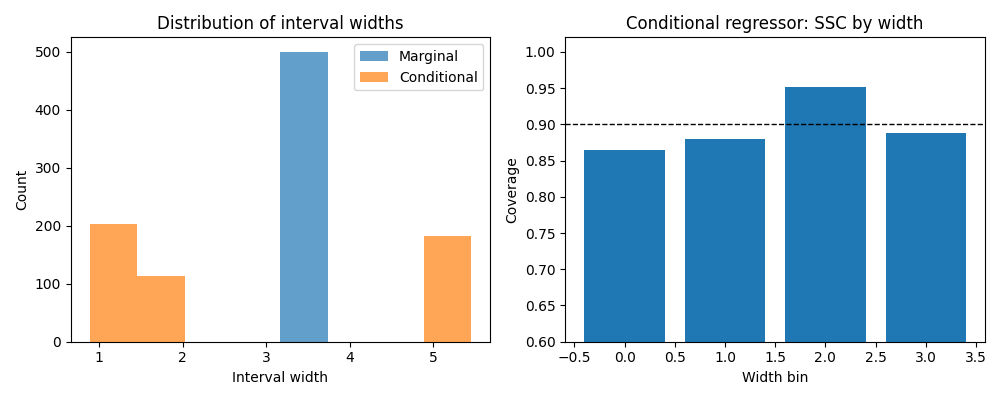

6. Check the width-conditioned diagnostics¶

The conditional interval has several distinct widths, so its size-stratified coverage can be plotted. The marginal interval is almost constant-width, and MAPIE correctly refuses to split it into width bins.

fig, axes = plt.subplots(1, 2, figsize=(10, 4))

width_marginal = interval_width(y_interval_marginal)
width_conditional = interval_width(y_interval_conditional)
width_bins = np.linspace(
    min(width_marginal.min(), width_conditional.min()),
    max(width_marginal.max(), width_conditional.max()),
    9,
)

axes[0].hist(width_marginal, bins=width_bins, alpha=0.7, label="Marginal")
axes[0].hist(
    width_conditional,
    bins=width_bins,
    alpha=0.7,
    label="Conditional",
)
axes[0].set_xlabel("Interval width")
axes[0].set_ylabel("Count")
axes[0].set_title("Distribution of interval widths")
axes[0].legend()

ssc_conditional = regression_ssc(y_test, y_interval_conditional, num_bins=4)[0]
axes[1].bar(np.arange(len(ssc_conditional)), ssc_conditional)
axes[1].axhline(confidence_level, color="black", linestyle="--", linewidth=1)
axes[1].set_ylim(0.60, 1.02)
axes[1].set_xlabel("Width bin")
axes[1].set_ylabel("Coverage")
axes[1].set_title("Conditional regressor: SSC by width")

plt.tight_layout()
plt.show()
